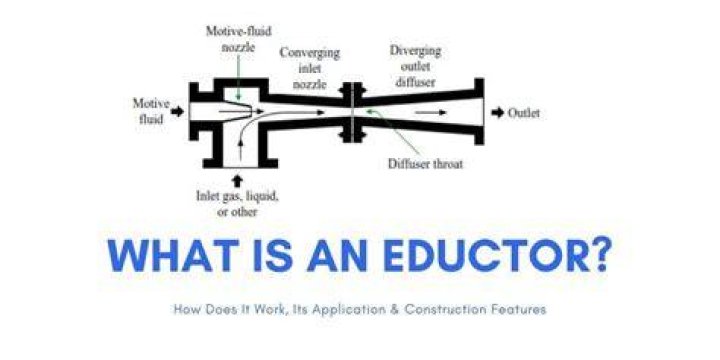

How does an eductor work? Basically the eductor, often referred to as a Venturi pump, is a simple device that converts pressure to velocity when a fluid (liquid or gas) is forced through a restriction in an enclosed line. This creates a partial vacuum in the eductor immediately after the orifice.
What is the purpose of eductor?
An Eductor is a device that works on the venturi effect for pump operation. It is a type of jet pump used to pump out liquid/sediments where the suction head is too low for the normal pump to operate.
Where is an eductor used on a ship?
Naval vessels use them for damage-control systems and for bilge and ballast systems, while Amoco, Esso, and other operators use them for pumping bilges and stripping ballast tanks. Portable eductors are widely used as emergency pumping devices.
What is a benefit of class A foam?
Many benefits of class A foam have been reported, including quicker fire extinguishment, faster overhaul time, less damage to buildings, and reduced fatigue on firefighting personnel due to quicker mop-up after the fire is out.
How long does Class A foam last?
The effective life of CLASS A PLUS foam concentrate can be maximized through optimal storage conditions and proper handling. CHEMGUARD concentrates have demonstrated effective firefighting performance with contents stored in the original package under proper conditions for more than 10 years.
How does the inlet of a foam eductor work?
Foam eductors operate using the Venturi Principal. The eductor’s inlet has a large diameter as compared to the small diameter in the center or Venturi area of the unit. The outlet of the eductor returns to the original inlet diameter. The result is that all the water entering the eductor is forced through the small center opening.
Which is the best position for foam eductors?
The ½% & 1% positions are for Class A foams and the 3% & 6% are for Class B foams. These positions will work for most foam concentrates.
Why does my foam concentrate not work on my eductor?
Due to design limitations inherent in all eductors, hoseline back pressure limits the total developed hoseline length and/or elevation of the nozzle. A hoseline creating too much back pressure will not let the eductor operate correctly and thus the eductor may not “pick up†the foam concentrate.
How does an eductor pump work at home?
Home » How Does an Eductor Work. Eductors are a kind of jet-type pump that do not require any moving parts to be able to pump out a liquid or gas. These pumps make use of their structure to transfer energy from one fluid to another via the Venturi effect.
