They keep water and waste moving through the pipes at the right speed. A flow that’s too slow leaves behind debris that clogs pipes. So it won’t plug up, the vent must rise six inches above the overflow level of the sink before the pipe goes horizontal. Obviously, a vent pipe in a kitchen island can’t do that.
Does every fixture need a vent?
Every fixture is required to have an internal or external trap; double trapping is prohibited by plumbing codes due to its susceptibility to clogging. Every plumbing fixture must also have an attached vent. The top of stacks must be vented too, via a stack vent, which is sometimes called a stink pipe.
Does kitchen sink need air vent?
A plumbing fixture like a sink can not function properly without a sink vent. A sink needs a vent because the pressure put on the drain pipe when water flows down the drain pipe needs to equalize. The air needs to escape the drain pipe in order for the sink to vent.
When was the island fixture vent first used?
The “old school” method of venting island sinks is appropriately called an “island fixture vent” in IRC Section P3112. This island loop, which first appeared in the Uniform Plumbing code in 1958, was later recognized in most other model plumbing codes, and has remained largely unmodified throughout the years.
Where is the vent on an island sink?

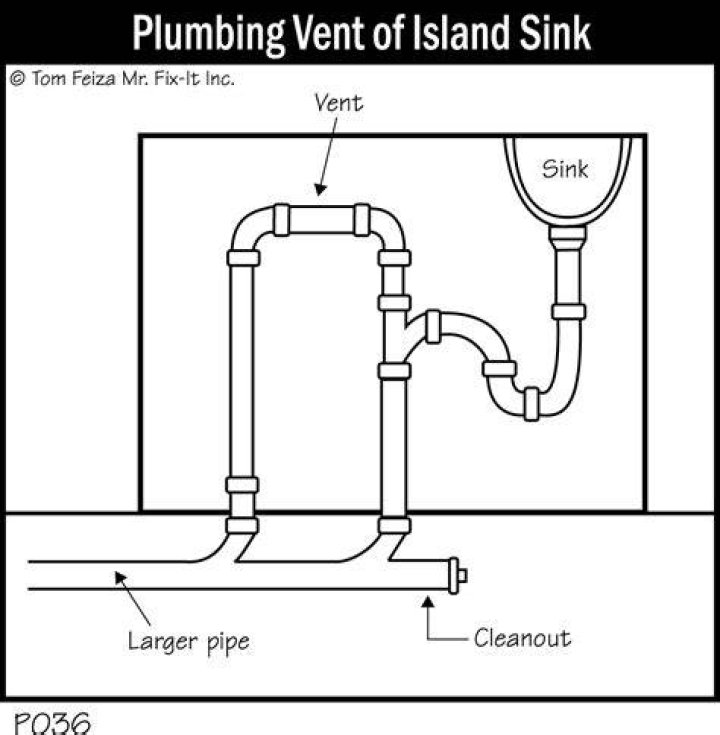

The unique feature of the island vent is that it returns downward to a horizontal vent (foot vent) below the floor before rising vertically above the spill rim of the sink (see Figure 909.1b). Other than floor-mounted fixtures and island fixtures, no other fixture is permitted to have its vent installed below the floor.
Can a drain vent be used on an island fixture?
Island fixture vent. The vent can also provide air to fill any vacuum created. The key to a functional island fixture vent is that the top elbow must be at least as high as the “flood level” (the peak possible drain water level in the sink). This ensures that the vent never becomes waterlogged.
What’s the best way to vent an island?
Synopsis: Code expert Glenn Mathewson describes three ways to vent a kitchen island: the island fixture vent, the air-admittance valve, and the combination waste and vent system.
