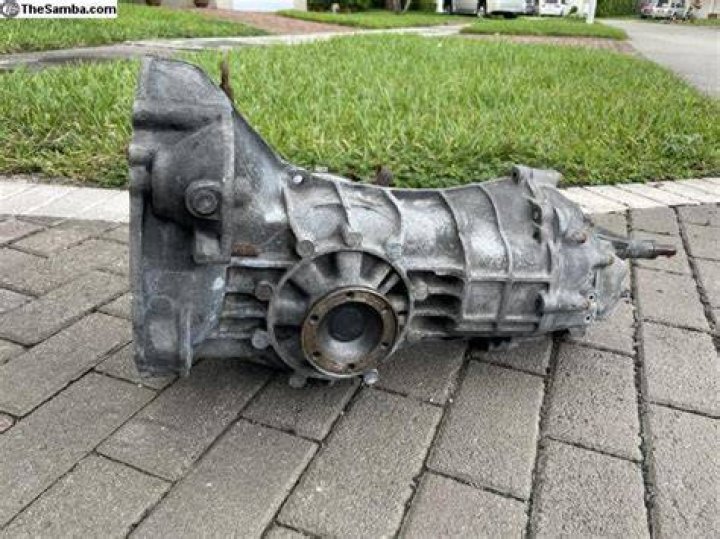

Rancho re-manufactured T1 (Beetle) swing-axle ”Freeway Flyer” gearbox. A standard strength gearbox but fitted with a high ratio 3.875 ring & pinion and higher 0.82 4th gear to reduce engine RPM at higher speeds.
What is the strongest VW transmission?
The 091…Aka the 6-rib They have a 4.56 R&P ratio, and are considered to be the strongest stock VW transmission.
What is a VW IRS transmission?
I.R.S. (Independent Rear Suspension) IRS transmissions use solid axle shafts to connect the wheels to the transmission via CV joints at either end of the axles. IRS axles easily can be identified by the 2 CV boots on opposite ends of the drive shafts.
How does a VW transaxle work?
The VW transmission relies on brass syncronizer rings to allow matching of gear speed to transmission input shaft or pinion shaft speed to facilitate grind-free shifting. All forward VW gears have their own syncronizer. Reverse does not have a syncronizer.
How much does it cost to replace a VW Beetle transmission?
If You plan to take it to an automotive mechanic, You can expect the replacement to cost between $1,000 and $1,800 for labor alone, typically billed from between 10 and 14 hours.
When did VW stop making air cooled engines?
Volkswagen air-cooled engine
| Volkswagen E-motor | |
|---|---|
| Manufacturer | Volkswagen |
| Production | 1936–2006 |
| Layout | |
| Configuration | Flat-4 naturally aspirated petrol engine |
What is the difference between a swing axle and IRS?
Swing axles transmissions can easily be identified by the enclosed swing-axle tube with a single axle boot on the transmission end of the axle tube. IRS can be identified by the exposed axle, and use two CV joints (Constant Velocity Joints), and have a CV Boot on each end of both axles – 2 per axle, 4 total CV boots.
Where is the VW gearbox code?
On a Bay Window Gearbox it comes straight out the back (opposite end to the bellhousing). If it is a T25 box it will come out of the side on the nosecone. Note: The terms 002 and 091 gearboxes comes from the first 3 digits on the code found on the underside of the gearbox.
What year did VW switch to IRS?
IRS (Independent Rear Suspension) transmissions were used from 1969 and on in VW Beetles and late-style Buses. IRS can be identified by the exposed axle, and use two CV joints (Constant Velocity Joints), and have a CV Boot on each end of both axles – 2 per axle, 4 total CV boots.
What’s the difference between Freeway Flyer and HD transmissions?
Freeway Flyer Transmissions are geared taller so that you can cruise the freeways at lower RPM’s without stressing out your engine at high RPM’s. HD Street Transmissions are available with: Super Diff, HD Side Cover, Welded Hubs, Steel Shift Forks, Hardened Keys and of course the full rebuild.
What is the drive ratio of a freeway flyer?
Gear Ratios of the Mofoco Freeway Flyer: 1st gear: 380 2nd gear: 206 3rd gear: 132 4th gear: 0.82 Ring and pinion (final drive ratio): 4.12
How much does a swing axle cost Freeway Flyer?
Please call us for Transmission pricing. Swing Axles are sold without axles. Transmissions are sold on exchange basis. You must trade a Swing for Swing, IRS for IRS, 12v for 12v and so on. The Type 1 core is $250.00 You need to return your core within 30 days of purchase.
