A stub-out is the exposed portion of a pipe installed during a plumbing, electrical or gas rough-in that is ready for connection to a fixture or device.

What is a stub out flange?

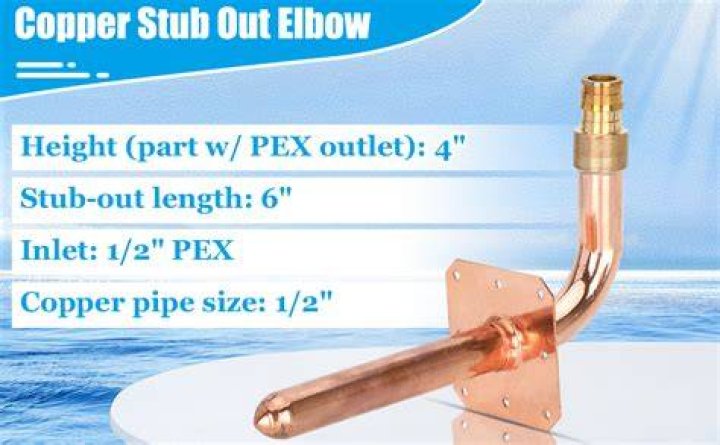

The stub out elbow with wall flange durable copper comes in a variety of lengths and inlet connections. they are mainly used when installing PEX pipe for plumbing applications and stub out the wall for further connections of outlet stop valves and plumbing fixtures.

What is a water line stub out?

The plumbing stub-outs are the end result of the rough-in phase of plumbing a residential or commercial building. They are usually installed while the walls are still uncovered; and after the drywall work and painting is complete, a plumber comes back and hooks them up to the plumbing fixtures.

What are the two types of PEX?

So What are the Differences between PEX types?

  • PEX A is made using the Peroxide, or Engel, method.
  • PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.
  • PEX C is created using the Electronic Irradiation, or Cold, method of cross-linking.

How far apart should water lines be?

Typical Supply Installation Generally, each hot and cold water line is run through separate holes spaced between 2-6 inches apart, depending on the amount of space that is available.

How far should stub be from sink?

Like the supply stub-outs, the drain stub-out extends from a fitting — usually a sanitary tee — to a point 3 or 4 inches beyond the wall. The drain, which is usually 2-inch plastic pipe, maintains a minimum slope of 1/4 inch per foot from the stub-out to the point where it ties into a main waste pipe.

What do you use to stub out PEX pipe?

Stub out elbows primarily used when installing PEX pipe for plumbing applications and are used to stub out of the wall and allow for further connection of outlet stop valves and plumbing fixtures. … PEX stub out elbows with ears can be nailed to a wooden surface, such as a stud. What size should a kitchen sink drain pipe be?

What happens if you stub out a PEX shower?

You stub out like you normally would and during the finish you cut the closed copper end and sweat on your shut offs. The major downside of pex is the flex in the tubing when you don’t want flex. The easy solution is to switch to copper at the stub outs, shower valves, etc.

What does a stub out mean in plumbing?

A stub-out is the exposed portion of a pipe installed during a plumbing, electrical or gas rough-in that is ready for connection to a fixture or device. The drain stub-out represents two separate pathways.

Can you use copper stubs with PEX brackets?

PEX and sloppy work come hand in hand. I use a bracket that the copper stubs solder to, and it can be used with the PEX/copper stubouts, also. In fact, since PEX is so much more flexible than copper, they should be used.
