The Structural Channel, also known as a C-Channel is distinguished from I-beam or H-beam or W-beam which has flanges on both sides of the web. They are measured very similarly to universal beams: the depth, the flange width and the kilograms per metre.
What is stronger I-beam or C channel?
You would need to provide specific sizes for the I beam vs. Channel question but in general a channel is one half of an I beam that is split down the vertical rib so yes, the I beam is stronger. But it also depends on the weight per foot, the flange width, and the thickness of the flanges.
What is channel steel used for?
In its largest form, channel steel is used to support bridge decks and other very large object and has the ability to absorb flex and other forces that might damage more rigid I-beams and H-beams. Because it comes in a variety of sizes, the steel components are used widely in industrial use.
Which way is channel iron the strongest?
In the vertical direction (as oriented for the beam profile chart image above), C-Channel is typically stronger for the weight than tube.
Is an H beam stronger than an I beam?
The cross section of the H beam is stronger than the cross section of the I beam, meaning it can bear a greater load. In comparison, the cross section of an I beam can bear direct load and tensile but cannot resist twisting because the cross section is so narrow. This means that it can only bear force in one direction.
What type of steel is I Beam?
structural steel
I-beams are commonly made of structural steel but may also be formed from aluminium or other materials. A common type of I-beam is the rolled steel joist (RSJ)—sometimes incorrectly rendered as reinforced steel joist. British and European standards also specify Universal Beams (UBs) and Universal Columns (UCs).
What is the strongest steel shape?
The hexagon is the strongest shape known. Not many people know this but if you want something to hold a lot of weight pick a hexagon. Hexagonal patterns are prevalent in nature due to their efficiency.
What is the strongest wood beam?
Power Beam® – 3000Fb – 2.1E – 300F Power Beam® is the strongest engineered wood product (EWP) on the market with design values of 3000Fb – 2.1E – 300Fv. Power Beam® is manufactured with superior strength southern yellow pine MSR Lumber.
Where are channel beams used?
Channels or C-beams are often used where the flat, back side of the web can be mounted to another flat surface for maximum contact area. They are also sometimes welded together back-to-back to form a non-standard I-beam.

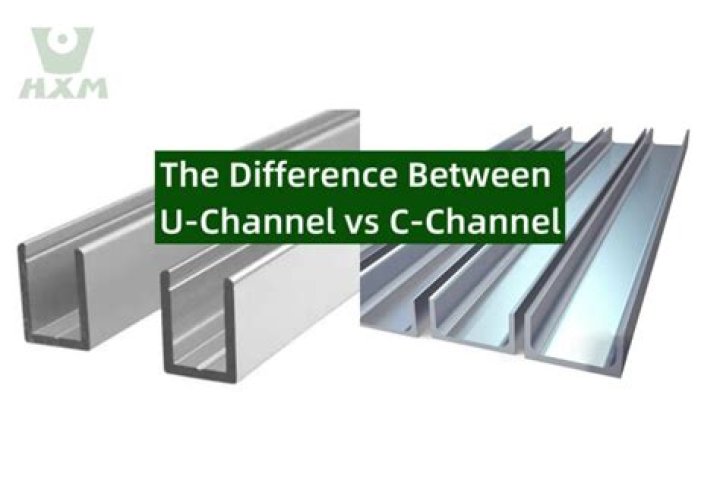

Are C channel and U channel the same?
The channel ceiling grid can support lights, manufacturing tools or others. What kinds of steel channel sizes you provide? Steel channel has been classified into “C” and “U” types depending on its outlook. UPE is for the C channel steel with parallel flanges while UPN for the U channel steel with tapered flanges.
What kind of beam is a structural channel?
The structural channel, also known as a C-beam or Parallel Flange Channel (PFC), is a type of (usually structural steel) beam, used primarily in building construction and civil engineering.
Can a C channel beam be welded to a steel bar?
Welding a C channel beam to a steel flat bar or plate creates a lintel of sorts; one side (the top half of the PFC) has an excellent load-bearing profile, while the other side (the remainder of the plate) can support other loads at the same time.
What are the different sizes of steel channels?
Steel Channel Sizes. Structural Channel is also know as C-beam. It’s a type of structural steel beam used primarily in building construction and civil engineering. Channel cross section is “C” shaped and consists of a wide web (usually oriented vertically in use) and two “flanges” at the top and bottom of the web.
Why are C beams used in web design?
If a load is applied equally across its top, the beam will tend to twist away from the web. This may not be a weak point or problem for a particular design, but is a factor to be considered. Channels or C-beams are often used where the flat, back side of the web can be mounted to another flat surface for maximum contact area.
