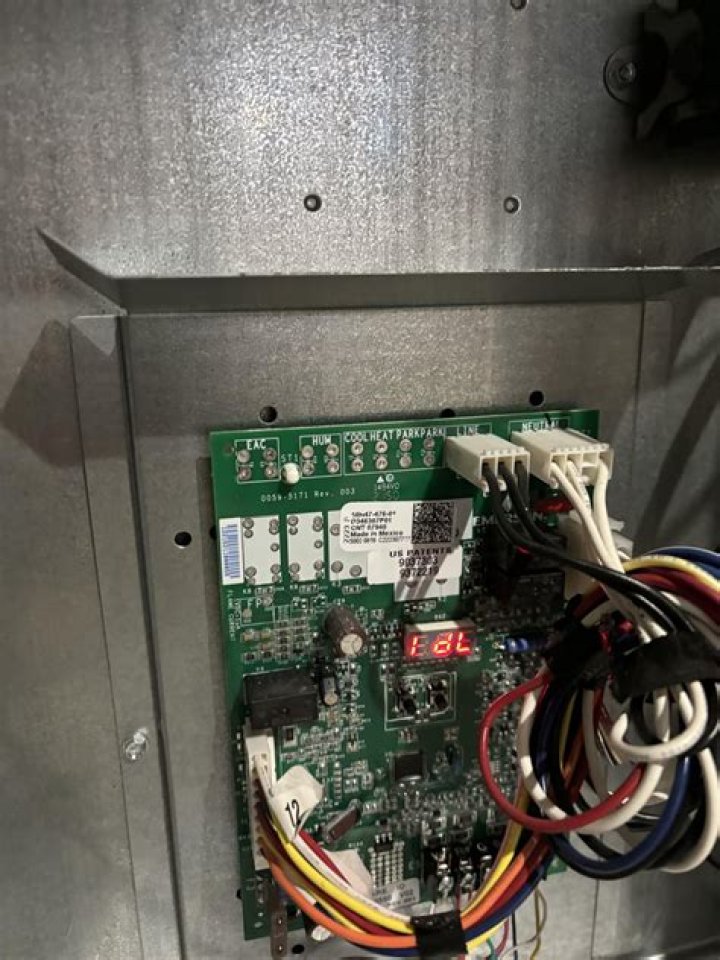

Wiring the humidifier through EAC accessory terminals puts the homeowner in control of their comfort. EAC terminals are energized on every HVAC blower call. The homeowner can simply change the thermostat fan switch from the “Auto” position to the “On” position any time they feel additional humidification is required.
What is the twin terminal on furnace?
On our furnaces, twinning is made easy without any additional controls. On each board is a terminal marked “twin”. By running a single wire between the twin terminal on each board and running a wire between the “C” or common terminal on each board, the furnaces are now twinned and will operate in unison.
What do the terminals on a furnace mean?
These strips of terminals have markings on them to signify the heating connection, the cooling connection, the fan connection, and heat pump connection, as applicable. There is also a terminal that supplies the power to run each of these functions.
What do the thermostat letters mean?
Y = yellow, g = green, r=red, w = white. Generally the red is your “hot” wire, straight from transformer that supplies constant power to your thermostat, which when each function, ie, cool, or heat is engaged, allows connection between red and whichever wire is called for by the thermostat.
What is 24V hum?
24V hum would indicate a connection for 24 volts to a humidifier. It is a source of 24 volts you could use.
Can two thermostats control one furnace?
The first of the two popular methods to control two or more HVAC units with one thermostat is to eliminate all of the low voltage transformers in all of the HVAC units, and install one large low voltage transformer in one HVAC unit. The second method involves using a master control panel.
Where do thermostat wires go on furnace?
The white wire underneath your thermostat connects to your heating system. It terminates at your air handler or furnace. The white wire connects to terminal W in industry-standard thermostats.
How do you hook up a furnace?
Furnace Installation: Step-by-Step
- Step 1: Choose your furnace and select the location for installation.
- Step 2: Decide where your duct and drain will run.
- Step 3: Connect to the ducting system.
- Step 4: Connect vent pipes.
- Step 5: Connect gas supply.
- Step 6: Connect electrical supply.
- Step 7: Connect condensate drain.
Where is the circuit board on a furnace?
The circuit board is usually located in the furnace’s blower chamber near the bottom of the unit. This is where the circulation blower fan motor is mounted.
Can a EAC-1 be used as a step down transformer?
You could use the EAC-1 terminal to power a step-down transformer. This is common with furnaces that energize the HUM terminal to line voltage. Check the humidifier manufacturer, they should have a properly sized transformer to fit this exact need. They should also have a wiring diagram for this type of setup, in the installation instructions.
When does EAC-1 turn on the humidifier?
Then the secondary side will power the humidifier. Whenever EAC-1 is energized, it will power the transformer, and the humidifier will turn on. As noted in the comments on the question, you may not get the expected results.
How is the W terminal connected to the furnace?
The “W/G” is connected to the W terminal on the furnace (call for heat). The “Cf” is connected to “C”. My understanding is that any time call for heat occurs, W is shorted to C, which is detected by my humidifier and it enables the flow of water.
What kind of Hum terminal do I need for furnace?
The HUM terminal on most furnaces is a 120VAC terminal. If you want to use the HUM terminal to control the humidifier, you’re going to have to use a step down transformer, to drop that down to 24VAC. Set your volt meter to measure AC volts. Place one probe on one HUM terminal. Place the other probe on the other HUM terminal.
