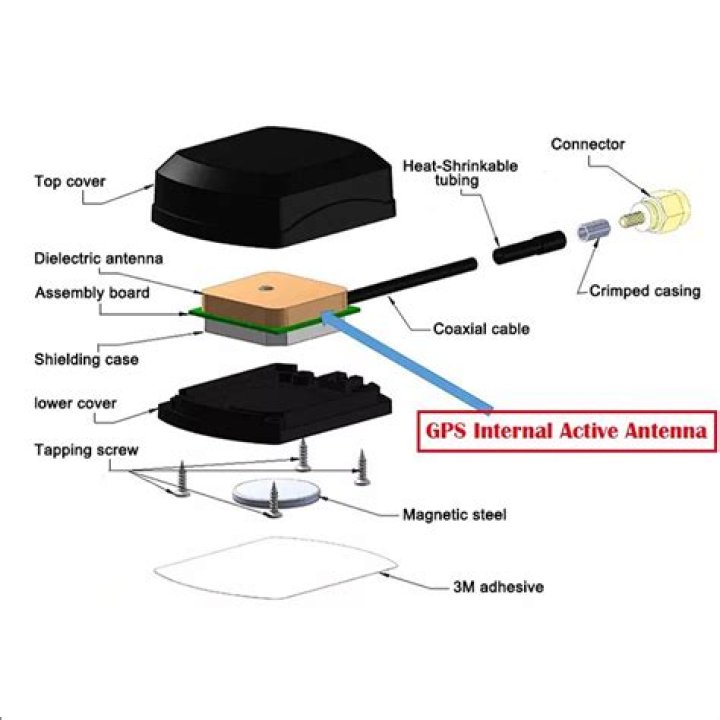

The GPS Antenna – The GPS antenna should be placed with a clear line of sight to the sky, with the beveled side pointing up. Any kind of metal will interfere with the signal. Even the obstruction caused by wiper blades, rear window defrosters, or other antennas can cause signal disruption.
Can GPS antenna be mounted upside down?
If it gets a good signal in an upright position, flipping it upside down shouldn’t make a noticeable difference, if it’s a quality GPS. You can buy some new 3M mounting tape and put the tape on the top of the unit, then mount it next to your mirror.
Does a GPS antenna need a ground plane?
Ground planes are an essential part of antenna design. They function like a runway for transmissions to and from the antenna, reflecting signals into and away from the antenna to minimise interference.
Are all GPS antennas the same?
Active antenna has 2 wires and if you measure active antenna cable with voltmeter there is 3-5 volts. New GS8000 has indipendent external GPS unit, hence the more wires than 2. And yes to your question, antennas are the same if they are rated to 3-5 volts.
Can I use satellite radio antenna for GPS?
Using Satellite Radio Antennas Users do not need antennas for GPS service because the devices are readily equipped with the right antenna, albeit quite small. Satellite radio users, however, need antennas to narrow down the exact signal spectrum from the communications satellite.
What frequencies do GPS use?
All GPS satellites broadcast on at least two carrier frequencies: L1, at 1575.42 MHz, and L2, at 1227.6 MHz (newer satellites also broadcast on L5 at 1176 MHz).
Does GPS work without antenna?
GPS (Global Positioning System) systems work by receiving signals from satellites. That isn’t possible without an antenna. While it usually isn’t necessary to install an external GPS antenna, there are cases where it can help.
Are car GPS antennas interchangeable?
And yes to your question, antennas are the same if they are rated to 3-5 volts.
Do you need a special antenna for satellite radio?
In order to receive satellite radio, you need a special antenna. Your standard car radio antenna won’t cut it because, unlike FM radio and HD radio, satellite radio and FM radio aren’t broadcast on the same frequency bands.
What are the types of GPS antenna?
Parabolic – The most widely used high gain antenna at microwave frequencies and above. Horn – a simple antenna with moderate gain of 15 to 25 dBi that consists of a flaring metal horn attached to a waveguide. Slot – consists of a waveguide with one or more slots cut in it to emit the microwaves.
What is active GPS antenna?
Jump to navigation Jump to search. An active antenna is an antenna that contains active electronic components such as transistors, as opposed to most antennas which only consist of passive components such as metal rods, capacitors and inductors.
What is a navigation antenna?
A US Air Force TACAN antenna. A tactical air navigation system, commonly referred to by the acronym TACAN, is a navigation system used by military aircraft. It provides the user with bearing and distance (slant-range or hypotenuse) to a ground or ship-borne station.
What is a car antenna?
A car antenna, which can be any electronic structure that is made to radiate or receive radio signals and other electromagnetic waves, is a must for every car. You may say that your vehicle’s stock antenna will do but it won’t last that long, may be four to six years.
